SHP320-20

Nickel
Manganese
Cobalt Plus

High Energy Density
Semi-Solid
State Battery

73.00 Wh

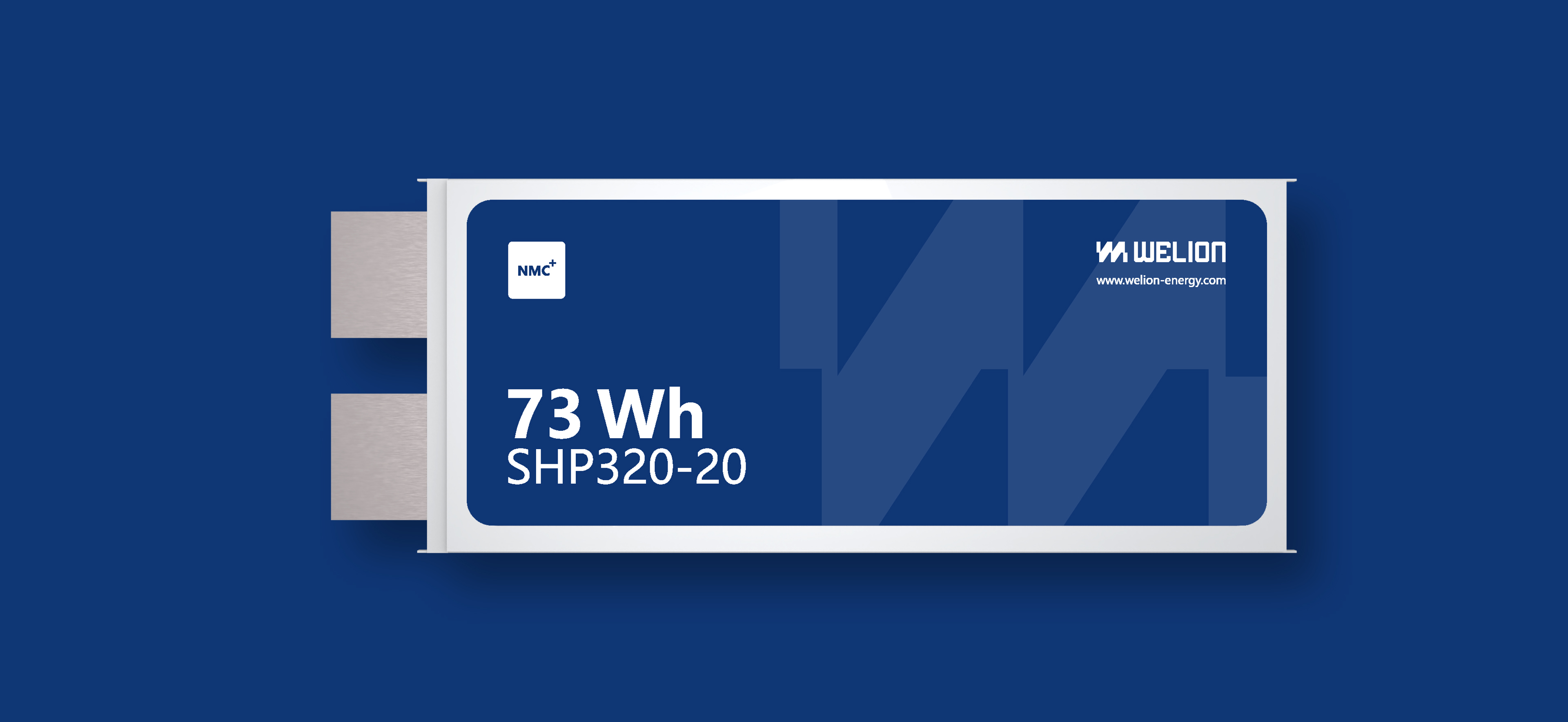

SHP320-20

Article number: 30000105

Manufacturer number: SHP320-20 / PL8574172-20Ah

Product Description

SHP320 series battery pouch cells with NMC+ chemistry offer industry-leading energy density, high C-rates, and extended lifespan, while their robustness ensures safety and performance in a range of applications. With energy density over 300 Wh/kg and 600 Wh/l, they are perfect for designs prioritizing volume, weight, and handling. They deliver extraordinary power output with a discharge rate of 7C and pulses up to 10C, ideal for high-performance motorcycles and LEVs. Despite their compact performance, they retain 80% capacity after 800 cycles at 97% depth of discharge - that's about 50,000 km on an E-bike or 100,000 km on a motorcycle. SHP320 cells are pass rigorous overcharge, short circuit, overtemperature and crush tests, ensuring reliable operation under demanding conditions.

Specifications

Typical

20.00 Ah / 73.00 Wh

Voltages

Nominal

3.65 V

Maximal

4.2 V

Minimal

2.75 V

Discharging

Ultrafast

5 C

Fast

3 C

Standard

0.33 C

Charging

Ultrafast

2 C

Fast

1 C

Standard

0.33 C

Temperatures

Discharge

-20-55°C

Charge

0-45°C

Energy Density

Gravimetric

300 Wh/kg

Volumetric

674 Wh/l

Certificates

Download
