SHP270-30
Nickel
Manganese
Cobalt Plus
High Energy Density
Semi-Solid
State Battery
111 Wh

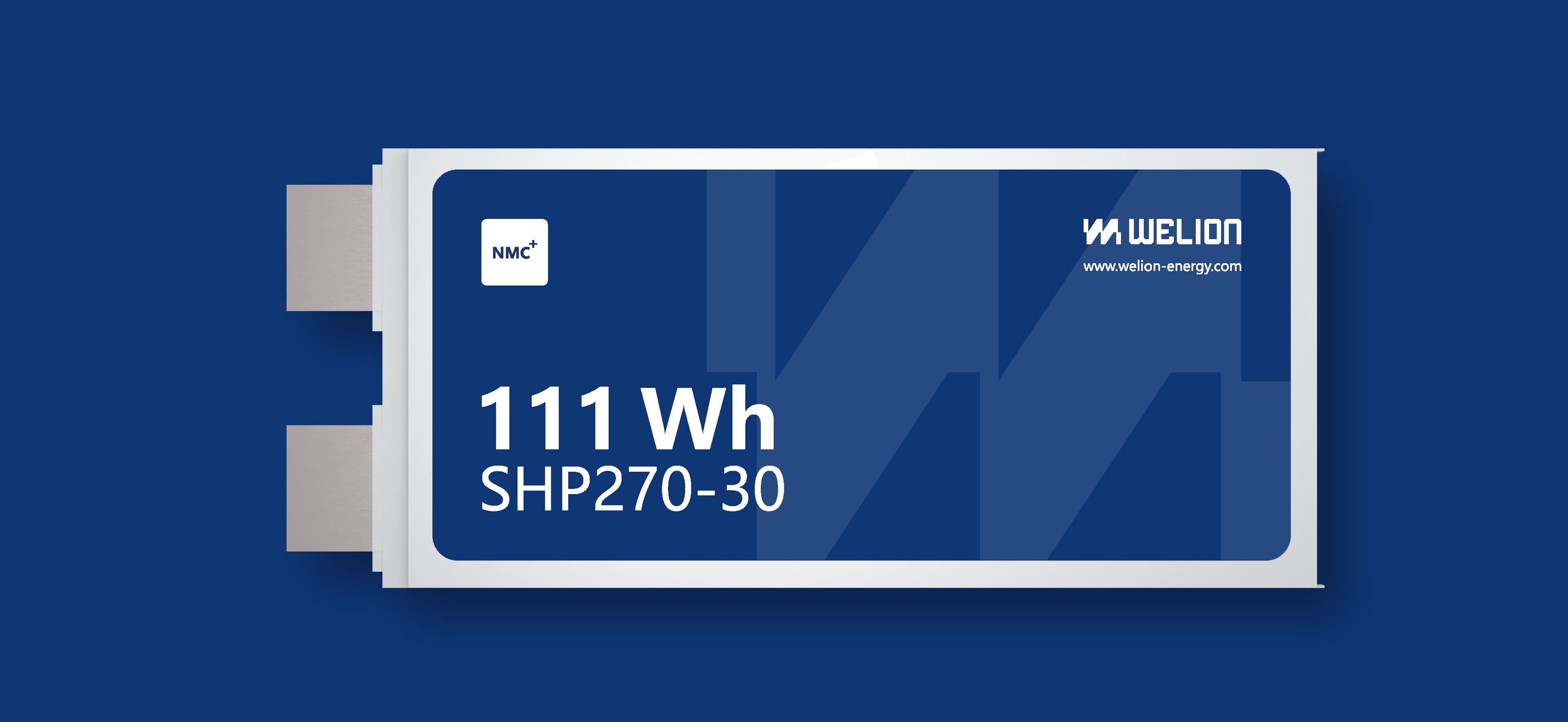

SHP270-30
Article number: 30000112
Manufacturer number: SHP270-30 / PL8574172-30Ah
Product Description
SHP270 series battery pouch cells with NMC+ chemistry offer excellent energy density, high C-rates, and an extended lifespan, and robust construction for a range of applications. With an energy density over 260 Wh/kg and 600 Wh/l, they are perfect for designs prioritizing volume, weight, and handling, while controlling costs. They deliver the same great power output as the SHP320 cells with a discharge rate of 7C and pulses up to 10C, ideal for high-performance motorcycles and LEVs. Despite their high performance, they retain 80% capacity after 800 cycles at 97% depth of discharge - that’s about 50,000 km on an E-bike or 100,000 km on a motorcycle. SHP270 cells pass rigorous overcharge, short circuit, overtemperature, and crush tests, ensuring reliable operation under demanding conditions.
Specifications
Typical
30.00 Ah / 111 Wh
Voltages
Nominal
3.7 V
Maximal
4.2 V
Minimal
2.75 V
Discharging
Ultrafast
5 – 7 C
Fast
3 C
Standard
0.5 C
Charging
Ultrafast
2 C
Fast
1 C
Standard
0.5 C
Temperatures
Discharge
-20-55°C
Charge
0-55°C
Energy Density
Gravimetric
275 Wh/kg
Volumetric
632 Wh/l
